TMH.05

TMH.05

Application

  • complete mobile heliport on transportable trailer
  • all equipment installed on/in weatherproof module

Files for download

pdf Data Sheet (7.86 MB)

Video (294.92 MB)

Description/Properties

  • module with equipment removeable with forklift
  • trailer attachable to cars with standard tow hitch
  • single trailer reusable with many modules
  • all light fixtures stored on retractable shelves
  • parallel power supply from built-in generator set
  • stationary power supply not required
  • all lighting and cabling included

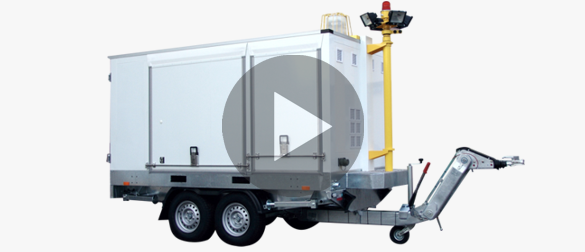

Video

Mobile heliport trailer.

Configuration

  1. TMH.05.60 for max. 60 (+6 spare) parallel ML 124 HP TLOF
  2. TMH.05.30 for max. 30 (+3 spare) parallel ML 124 HP TLOF

Standard equipment

  1. TMH.05.60
    • 66 (60+6) parallel ML 124 HP TLOF lights
    • 6 pcs of 50 m parallel cables (or 3 pcs 80 m)
    • 66 pcs of 5 m parallel cables
    • - all cables with molded connectors
  2. TMH.05.30
    • 33 (30+3) parallel ML 124 HP TLOF lights
    • 2 pcs of 50 m parallel cables (or 1 pc 80 m)
    • 33 pcs of 5 m parallel cables
    • all cables with molded connectors
  3. flash beacon FL 111
  4. parallel power supply switchboard TRP.1x
  5. illuminated telescopic wind cone TWI 10 with obstruction light
  6. petrol generator set with electrical or manual (TMH.05.30 only) start
  7. fire extinguisher

Technical parameters

  • TMH.05 module
    • dimensions 3650×1800×2200 mm
    • weight approx. 2200 kg
  • TMH.05 trailer
    • dimensions 5480×1800×1015 mm
    • weight approx. 484 kg
  • wind cone height 6500 mm
  • intensity steps 10, 30, 100 %
  • operating temperature from -20 to +40 °C
  • storage temperature from -40 to +60 °C

Electrical parameters

  • power supply 1NPE ~50Hz 230V/TN-S
  • generator power
    • TMH.05.60 - 10 kVA (only electrical start)
    • TMH.05.30 - 6 kVA
