H5 (DOUBLE)

H5 (DOUBLE)

Application

  • comfortable two-story autonomous heliports
  • two separate ISO containers with dispatching and technological parts, special welded structure resistant to corrosion, transportable modules

Files for download

pdf Data sheet (3.61 MB)

Basic Equipment

  • flash beacon and obstruction light
  • local and remote control
  • kitchenette and toilet
  • dispatcher´s console with glass overlooking to the heliport area
  • connections with outside staircase
  • equipment for the main supply voltage 160 A/400 V
  • switchboard with automatic snapping and surge protection
  • diesel generator set to provide autonomous operation
  • constant current regulator  TCR.2

Option

  • living module
  • meteorological station
  • telephone, NDB, voice recording
09 07 heliports h5 double schema 01

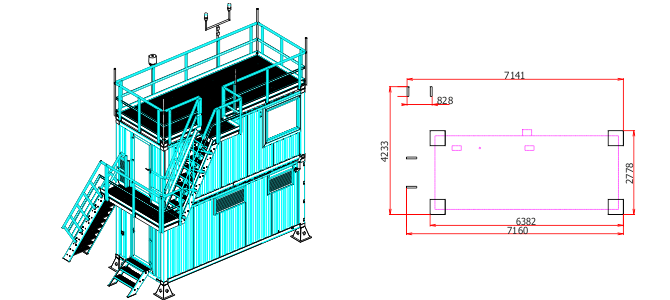

09 07 heliports h5 double schema 02

09 07 heliports h5 double schema 03
