TFL-32

TFL-32

Application

  • the sequential flash system is designed for better identification of the approach lights and to identify the threshold or end of the runway

Files for download

pdf Data Sheet (5.16 MB)

pdf Certificate ÚCL (359 KB)

pdf Certificate MO AČR (497 KB)

pdf Certificate LÚ SR (70 KB)

In accordance with

  • ICAO Annex 14, Vol. 1
    • 5.3.4 Approach lighting systems
    • 5.3.8 Runway threshold identification lights
  • EASA CS-ADR-DSN, Issue 2
    • CS ADR-DSN.M.630 Precision approach category I lighting system
    • CS ADR-DSN.M.635 Precision approach category II and III lighting system
    • CS ADR-DSN.M.670 Runway threshold identification lights
    • GM1 ADR-DSN.M.625 Approach lighting systems, general and applicability
    • GM1 ADR-DSN.M.670 Runway threshold identification lights

Description / properties

  • the system is powered from the standard 3-phase LV network via the TFL 32.CU control unit
  • controling and monitoring of the lights is possible via the J-bus or contact control (limited monitoring functions)
  • synchronization of the flash sequence between the lights is ensured by interconnection
  • in the event of a failure of one RTIL, blocking of the second light is ensured
  • for all HV components, limit switches are used to ensure the blocking and discharging of HV circuits in the event of opening the covers of these circuits
  • the power box can be mounted vertically or horizontally
  • light TFL 32.FH2
    • made of aluminum alloy
    • easy access to the terminal block thanks to the removable back cover
    • durable and optically stable output thanks to the PAR56 flash lamp
    • high level of safety through the use of limit switches
    • part of the light is a tiller which allowes its easy setting in elevation
05 04 02 tfl 32 construction 01

Construction

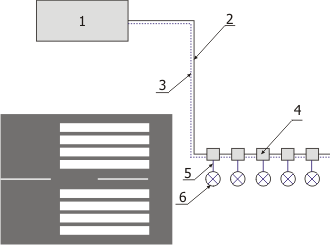

  1. control unit TFL 32.CU
  2. power cables
  3. communication cables
  4. power box for lights TFL 32.PS
  5. power cables for lights
  6. lights TFL 32.FH2

Montage/connection/supplying:

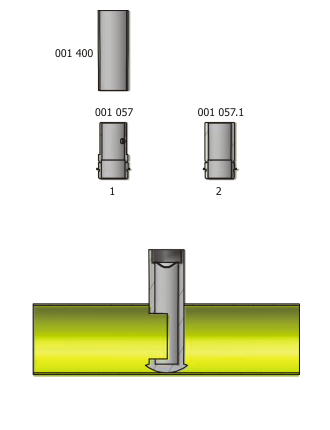

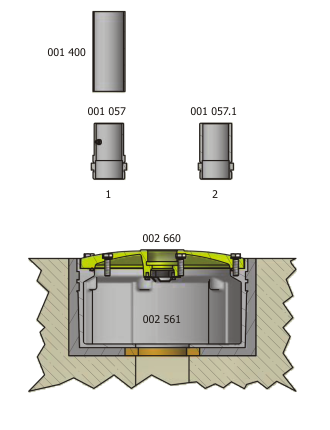

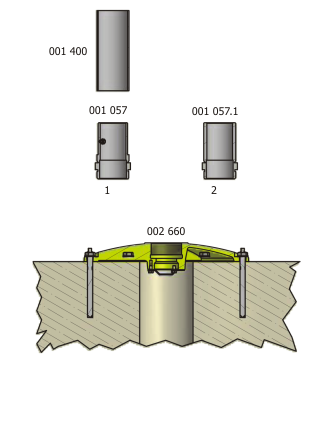

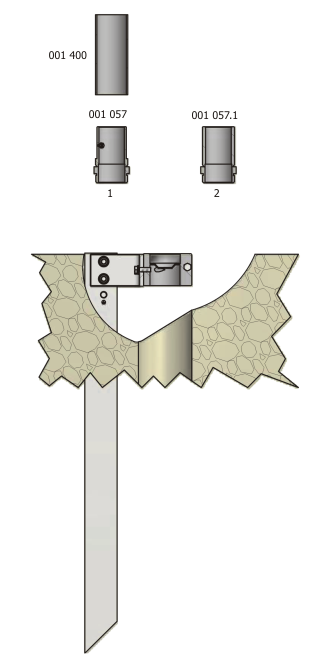

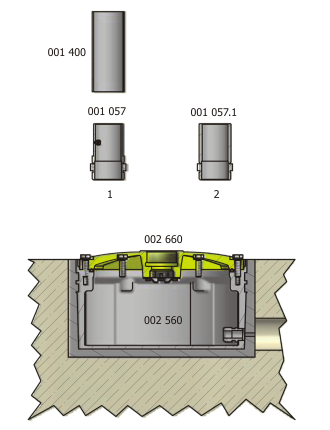

  • 1. mounting for adjustable height (breakable coupling 001 057 and tube Ø 60 mm 001 400) or
  • 2. mounting to the lowest optical height (only breakable coupling 001 057.1)
  • the light is connected to the power box  (TFL 32.PS) with a special HV cable (maximum length l = 15 m)
  • the cable is led out of the light by the inside of the breakable coupling and the tube
05 04 02 tfl 32 zakladna bocni vyvod 05 04 02 tfl 32 zakladna spodni vyvod 05 04 02 tfl 32 viko beton 05 04 02 tfl 32 rahno 05 04 02 tfl 32 jehla

Parameters of the control unit TFL 32.CU:

  • dimension (w×h×d) 575×1330×540 mm
  • weight 85 kg
  • surface finish gray baking enamel RAL 7035/RAL 7030
  • power supply 3NPE ~50Hz 3×230/400V/TN-S
  • protection IP20

Parameters of the power box TFL 32.PS:

  • dimension (w×h×d) 437×650×250 mm
  • weight 16,5 kg
  • power 271 VA (PF 0,77)
  • protection IP 66

Parameters of the light TFL 32.FH2:

  • dimension (w×h×d) 214×292×198 mm
  • weight 2,3 kg
  • surface finish natural aluminum or yellow baking enamel  RAL 1021
  • lamp voltage max. 2000 V ±10 %
  • flash energy max. 60 J at 2 Hz
  • protection IP 55
  • power 271 VA (PF 0,77)
  • resistance to environmental influences
    • working temperature -40 ÷ +55 °C
    • resistance to thermal shock
    • (sudden change of surface temperature)
    • moisture resistance up to 95 % at 55 °C, including condensation and icing conditions
    • resistance to salt mist
    • rain resistance
    • wind resistance up to 480 km/h

05 04 02 tfl 32 construction 02Construction

  1. support of the light
  2. back cover
  3. PAR56 flash lamp
  4. tiller

Ordering codes:

  • TFL 32.CU control unit 902-300
  • TFL 32.PS power box for the light 902-301
  • TFL 32.FH2 flash light 902-303

* power and data cables are ordered separately according to a specific project
* it is necessary to order a specific length of the HV cable (depending on the distance to the TFL 32.PS power case) for individual flash lights, otherwise they will be supplied in a standard version (1.5 m HV cable)
* the sets for fitting the power box must be ordered separately according to a specific project
