TL 322

TL 322

Application

  • halogen 6,6 A elevated omni/bi-directional high/medium intensity light for stationary aerodromes

Files for download

pdf Data Sheet (5.21 MB)

pdf Certificate ÚCL (307 KB)

pdf Certificate MO AČR (592 KB)

pdf Certificate LÚ SR (359 KB)

Light fixture function

  • halogen 6,6 A elevated bidirectional light high intensity suitable for CAT I-III ICAO
    • runway edge light
  • halogen 6,6 A omni/bi-directional elevated light medium intensity suitable for NO CAT
    • approach centre line and crossbars light
    • runway threshold and runway end light
    • runway edge light
    • taxiway edge light

Certificate basis

  • ICAO Annex 14
  • FAA AC150/5345-46
  • IEC IEC 61827
  • АП-170, Том II

Description/properties

  • sturdy and tight aluminium housing (IP 67)
  • small dimensions and low weight
  • optimized heat dissipation and sealing increases lamp lifetime considerably
  • no optical adjustments after maintenance
  • little maintenance and simple cleaning
  • quick-release locking device with hinge

05 01 08 tl322 konstrukceConstruction

  1. dioptre with sealed annular ring
  2. screw M4 x 8
  3. flat spring
  4. bulb
  5. seal
  6. aluminium cover
  7. stainless steel clips
  8. cable with connector

Mounting/connection/supplying

  • mounting on fixing elements Ø 60 mm:
    • pedestal PED-01.26
    • breakable coupling 001 057.1
    • breakable coupling 001 057 with tube 001 400
    • breakable coupling 001 057 with tube  001 400 and pedestal PED-01.66
    • crossbar with peg 60 mm
  • powered via isolation transformer from the constant current regulator series circuit
  • including halogen lamp and connecting cable (213/350/450 mm) with connector L-823 Type II, Class B, Style 5
05 01 08 tl322 smer czTL 322-H-R-150
orientation rays toward
the center runway

Mechanical parameters

  • weight (cardboard box) ~2,2 kg
  • dimensions (cardboard box) 155×145×190 mm

Operating conditions

  • level of protection IP 67
  • climatic conditions ±55 °C
  • resistance to wind and exhaust gases 480 km/h

Source of light

  • halogen airport bulb 45/65/150 W/6,6 A with cap Pk 30d

Accessories

  • accessories must be ordered separately (see also section “mounting system”)

High intensity - ordering codes / application (toe-in 3,5°/4,5° towards RWY centre line)

type el. power [W] color application code
TL 322-H-R-150-WW 150 white/white runway edge light 315-854
TL 322-H-R-150-WY 150 white/yellow runway edge light - remote ⅓ (600 m) RWY 315-850
TL 322-H-R-150-YW 150 yellow/white runway edge light - remote ⅓ (600 m) RWY 315-851
TL 322-H-R-150-YR 150 yellow/red runway edge light - remote ⅓ (600 m) RWY + displaced threshold 315-852
TL 322-H-R-150-RY 150 red/yellow runway edge light - remote ⅓ (600 m) RWY + displaced threshold 315-853

Low intensity - ordering codes / application (without toe-in)

type el. power [W] color application code
TL 322-L-A-65-W 65 white approach centre line and crossbars light 315-864
TL 322-L-R-65-GR 65 green/red runway threshold and runway end light 315-841X
TL 322-L-R-65-GN 65 green/shade runway threshold light 315-843X
TL 322-L-R-65-RN 65 red/shade runway end light 315-842X
TL 322-L-R-45-RN 45 red/shade stopway light 315-848X
TL 322-L-R-45-WW 45 white/white runway edge light 315-857X
TL 322-L-R-45-WY 45 white/yellow runway edge light - remote ⅓ (600 m) RWY 315-855X
TL 322-L-R-45-WN 45 white/shade "touchdown point marking light" * 315-859X
TL 322-L-R-45-YR 45 yellow/red runway edge light - remote ⅓ (600 m) RWY + displaced threshold 315-852X
TL 322-L-R-45-YN 45 yellow/shade "runway turn pad edge light" * 315-858X
TL 322-L-T-45-B 45 blue taxiway edge light 315-865

 * according to the Russian Federation standards

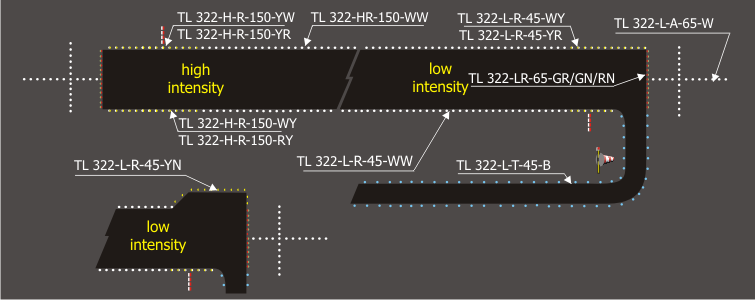

tl322 relief en
