SU-24B.RT (AMS terminal)

SU-24B.RT (AMS terminal)

Application

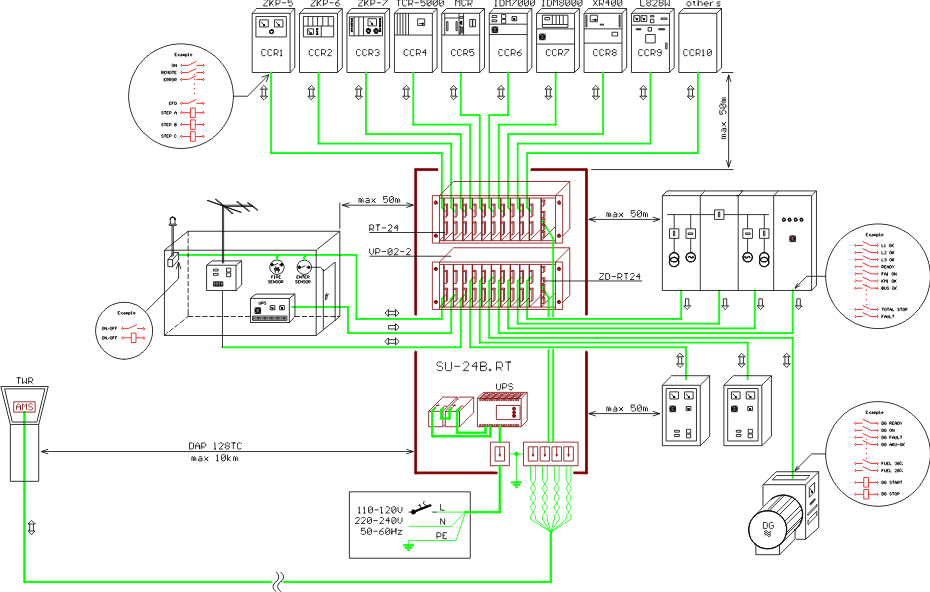

  • remote monitoring and control of various technological equipment (regulators, distributors, UPS, diesel generator sets, power equipment, etc.) with use of data transfer system DAP 128TC

Files for download

pdf Data Sheet (591 KB)

Description/Properties

  • one or two 19” modules
  • VP-02-2 are the basis
  • max. 10 or 20 input/output modules RT-24
  • feeding by AC mains voltage backed by internal battery, or by DC voltage
  • comprises over-voltage protection of communication and power supply source
  • bottom part of the rack can contain other equipment according to the customer's requirements

Basic units of the rack SU-24B.RT

SU-24B.RT
  • Module VP-02-2
    • basic 19" module into the rack SU-24B.RT
    • 1 position for the module ZD-RT24
    • 10 positions for the modules RT-24
    • distributes supply voltage and data transfer lines to modules
  • Module ZD-RT24
    • power supply source for the module VP-02-2.
    • feeds the modules RT-24
    • monitors supply voltage and failure states  of the main power supply source
    • enables simple checking of data on data transfer line
  • Module RT-24
    • universal input-output module of the data transfer system DAP 128TC
    • it is connected to the data transfer line of the system DAP 128TC
    • 14 galvanically separated inputs 12–48 VDC
    • 7 galvanically separated contact outputs 0,2 A/60 VDC/48 VAC
    • galvanically separated data transfer line
    • it receives commands from the central unit and converts them to 7 outputs
    • monitors state of its 14 inputs and then transmits them as data to central unit
    • two connectors D-Sub-37 with inputs and outputs
    • each module has its own address that can be set by configuration jumpers
    • installation into 19" module VP-02-2
